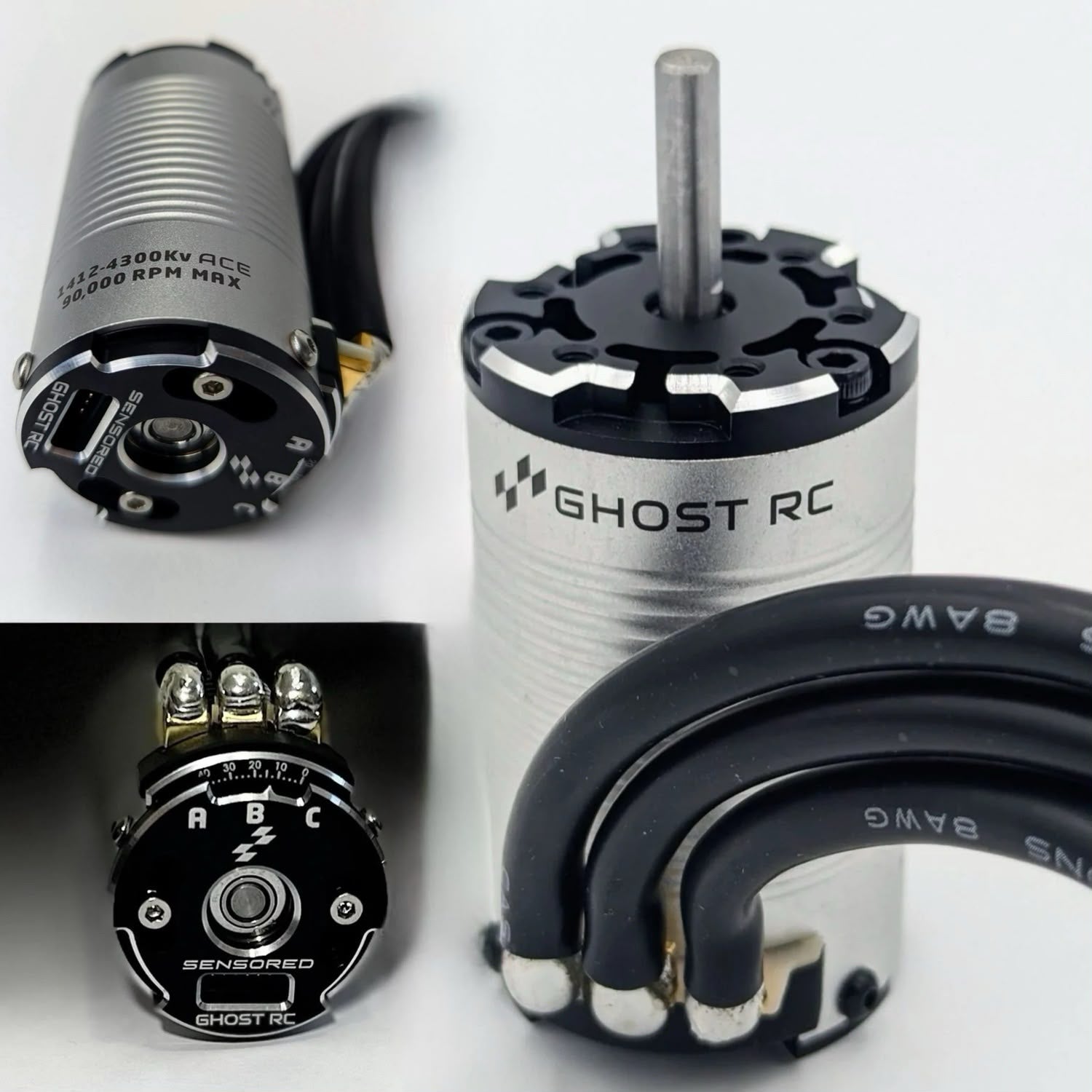

Castle Creations & Ghost RC 1412 4300Kv Sensored Drag Motor

The Ghost RC 1412 4300Kv Drag Motor is designed for demanding drag-racing and speed-run applications. Developed by Castle Creations to Ghost RC's requirements, it combines a longer 1412 motor configuration, adjustable timing, and 2S-4S compatibility for builds that benefit from its torque-focused setup.

Ghost RC recommends this motor for applications outside of dedicated No Prep racing, including sand drag and heavier drag-racing vehicles.

KEY FEATURES

• 4300Kv sensored motor designed for high-performance drag racing applications.
• High-torque performance suited to demanding racing conditions and heavier sand drag vehicles.
• Adjustable rear endbell provides base timing adjustment from 0° to 40°.
• Stainless-wrapped rotor provides the durability required for high-speed operation.
• Maximum operating speed of 90,000 RPM.
• 550-size motor can combines a compact 36mm diameter with a 68.2mm overall motor length.
• 5mm output shaft with Siamese flats provides a secure mounting surface for compatible 48-pitch or 32-pitch pinions.
• Replaceable 8-gauge motor wires help handle the high-current demands of drag racing.
• Oversized solder tabs are designed to reduce resistance and increase current capacity.
• Pre-installed 6.5mm male Castle bullet connectors.
• Compatible with 2S through 4S LiPo batteries.
• Compatible with SmartSense, sensored, and sensorless operation when used with an appropriate ESC.

RECOMMENDED APPLICATIONS

Based on Ghost RC's recommendation, the 1412 4300Kv is the preferred option for drag and speed-run applications outside of dedicated No Prep racing.

• Sand drag racing
• Heavier drag-racing vehicles
• 3S and 4S drag applications
• Other high-performance drag and speed-run builds

For a dedicated 1/10 No Prep drag car, the 1408 7000Kv motor is recommended instead.

Recommended ESC: Ghost RC Cobra 8 ACE No Prep Drag ESC

⚙️TECHNICAL SPECIFICATIONS

WATER-RESISTANCE INFORMATION

The motor's sensor board is protected by a silicone conformal coating to help protect its sensors from moisture. However, the sensor-wire connections are not water-resistant. Water entering these connections can interrupt the sensor signal and cause the motor to lose sensored operation.

We recommend applying dielectric grease around the outside of the sensor-wire connections after installation. Routine maintenance is also recommended after operating the motor in wet conditions.

SAFETY AND WARRANTY

This product is intended for advanced drag-racing applications. Drag racing and speed-run setups place extreme demands on electronic components and require careful setup, tuning, and an advanced understanding of RC power systems.

Improper setup, installation, application, alteration, or ESC tuning can result in catastrophic failure of the motor, ESC, batteries, or other vehicle components. Every component in the power system can be subjected to significant stress during drag-racing and speed-run operation.

Due to the aggressive and abusive nature of these applications, Perfect Pass RC is not liable for incidental or consequential damage to other equipment resulting from the use of this motor. Also, Perfect Pass RC is not responsible for failures caused by abuse, improper installation, misapplication, or alteration.

THIS PRODUCT IS SOLD WITHOUT WARRANTY!

PRODUCT SUPPORT

Perfect Pass RC does not provide technical support, service, or trade-ins for Ghost RC products. Questions regarding this product should be directed to Ghost RC.
