Castle Creations Cobra 6 ESC & 2028 800KV Motor Combo + GIFT
Castle Creations Cobra 6 ESC & 2028 800KV Motor Combo + GIFT
SKU:010-0184-01
Low stock
Couldn't load pickup availability

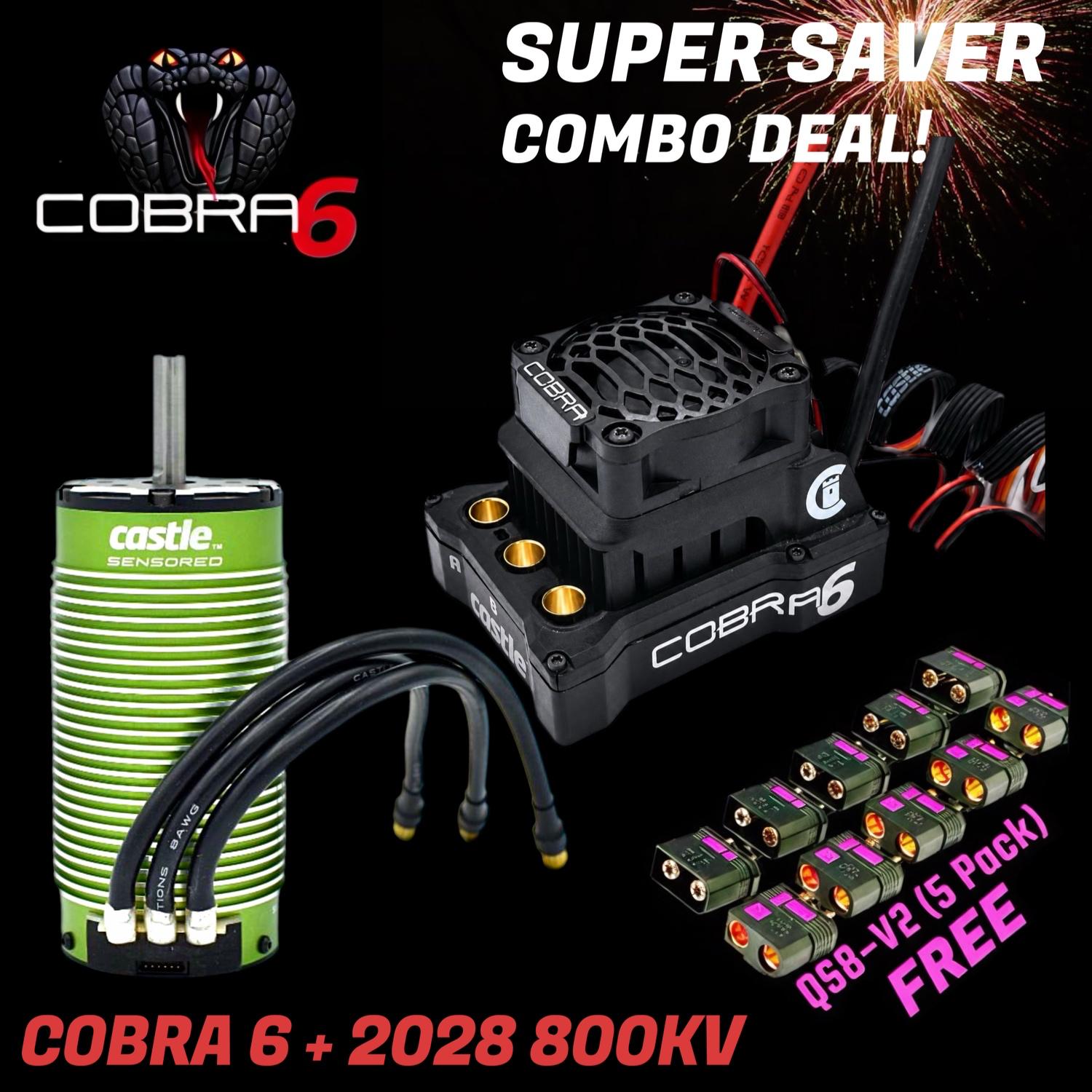

This Cobra 6 ESC with Castle 2028-800KV Sensored Motor Combo is designed for 1/6 scale RC vehicles weighing up to 25 lbs and running up to 8S LiPo power.
Built around Castle’s popular Monster X 8S ESC, this combo combines smooth low-speed control with the power and responsiveness required for large-scale, high-performance RC applications.
Powered by Castle’s updated 32-bit ESC architecture, the Cobra 6 introduces expanded tuning options, enhanced onboard data logging, and improved throttle response compared to previous generations.
📦WHAT’S INCLUDED
- Cobra 6 ESC
- Castle 2028 800KV Sensored Motor
- Castle Link V4 USB Adapter
- 300mm Direct Connect Sensor Wire
- Quick Start Guide
- Cobra Decals
🔥NEW FEATURES
- Modern 32-bit processing platform delivers smoother throttle response, faster ESC communication, and improved motor control precision
- Upgraded onboard data logging system includes:
- Twice the logging sample rate compared to previous Castle generations
- Up to 8× longer logging duration
- Electrical motor timing monitoring
- Integrated accelerometer data recording
- Continuous loop logging to prevent missed data
- Ability to review and download individual driving sessions
- Expanded tuning capabilities featuring:
- More refined brake adjustment settings
- Independent brake and reverse curve control
- Fully adjustable internal BEC from 5.0V to 8.0V in 0.1V increments
- Includes Castle Link V4 USB programmer for firmware updates and complete ESC tuning access
- Updated USB-C interface for faster and more convenient connectivity
- Compatible with optional B-LINK™ Bluetooth adapter for wireless tuning through the Castle Link 2 mobile app
- Integrated mounting holes in the aluminum case simplify direct chassis installation
🔥ADDITIONAL FEATURES
The Cobra 6 ESC features Castle’s latest 32-bit architecture designed to improve throttle precision, motor control, and overall driving consistency in high-power RC vehicles.
Compared to previous Castle ESC generations, the Cobra 6 introduces an upgraded logging system with twice the sample rate, longer recording duration, and expanded telemetry channels including motor timing and onboard accelerometer data.
This allows drivers to better analyze traction, gearing, battery performance, and motor efficiency.
The ESC supports SmartSense™ technology when paired with compatible Castle 4-pole sensored motors. SmartSense combines smooth sensored startup performance with efficient high-speed sensorless operation for improved drivability and throttle feel.
The integrated BEC is adjustable from 5.5 V to 8.0 V in 0.1 V increments with 8 A peak output capability, making it suitable for modern high-voltage servos and demanding steering systems.
Built-in USB-C connectivity and Castle Link compatibility allow complete ESC tuning, firmware updates, and data log analysis through Castle’s software platform.
The Cobra 6 is designed for 1/7 and 1/6 scale vehicles weighing up to 25 lbs and supports 2S–8S LiPo operation.
⚙️TECHNICAL SPECIFICATIONS
CONTROLLER
| Category | Details |
|---|---|
| Input Voltage Range | 2S – 8S LiPo (8.4 V – 33.6 V) |
| BEC Specifications | 5.5 V – 8.0 V adjustable in 0.1 V increments (8 A peak), default 5.5 V |
| Application Guidelines | Designed for 1/6 scale RC vehicles weighing up to 25 lbs. Not designed for drag racing or high-speed applications. |
| Running Modes | Sensored, Sensorless and SmartSense™ when paired with a compatible Castle 4-pole 12-slot sensored motor |
| Reversible | Yes – may be disabled for racing |
| On/Off Switch | Yes – Waterproof |
| Cooling Fan | Factory equipped 40 mm, fully removable. Fan is not waterproof and must be removed before wet operation. |
| Dimensions (L × W × H) | 2.73" × 2.13" × 1.85" (69.5 mm × 54.1 mm × 47 mm) |
| Weight (with wires) | 5.75 oz (163 g) |
| Connectors | 6.5 mm female bullets for motor connection |
| Required Connectors | Use high-current connectors rated 120+ A, such as Castle CC Bullet 6.5 mm, Castle CC Bullet 8.0 mm, or 6.5 mm Polarized Castle Connectors |
| Recommended Batteries | 5000 mAh or higher LiPo batteries rated 50C continuous discharge or higher |
| Recommended Motors | Castle 4-pole 12-slot sensored brushless motors compatible with the Cobra 6 operating range (2028 800Kv, 1717 1650Kv, 1717 1260Kv) |
| Installation | Aluminum case with mounting holes for secure installation |
| Programmability | Programmable via included Castle Link V4 USB Adapter and Castle Link 2 software. Optional Bluetooth tuning available with B-Link 2 and Castle Link 2 mobile app. |
| Operating Environment | Water-resistant design for wet conditions, but not for full submersion. Rinse after mud or salt exposure. Remove cooling fan before wet driving because the fan is not waterproof. |
MOTOR
| Category | Details |
|---|---|
| Input Voltage Range | Supports up to 12S LiPo (8S maximum when used with the Cobra 5 ESC) |
| KV Rating | 800 KV |
| Maximum RPM | 45,000 RPM |
| Motor Dimensions | Length: 4.4" (112.7 mm) • Diameter: 2.2" (56.3 mm) |
| Shaft Dimensions | Length: 30 mm • Diameter: 8 mm |
| Weight (with wires) | 44 oz / 2.75 lbs (≈1.25 kg) |
| Mounting Hole Pattern | 4 mm holes on 30 mm spacing |
| Connectors | 8.0 mm male bullet connectors |
| Items Required for Operation | None - ready to install |
| Application Guidelines | Ideal upgrade for 1/5-scale RC cars, including gas-to-electric conversions, weighing up to 30 lbs (13.6 kg) |
| Maximum Recommended Vehicle Weight | 30 lbs (13.6 kg) |
IMPORTANT NOTE:
The Cobra 6 is not designed for drag racing or high speed applications. It has built-in safety features that protect against aggressive setups and may limit power. For drag racing and speed runs we recommend using the Cobra 5 ACE and Cobra 5 ACE HV.
Applying voltages higher than 33.6V will cause irreparable damage to the ESC. Do not run HV cells exceeding 4.2V per cell when operating at the maximum 8S cell count.
Although the Cobra 6 is waterproof, it is not intended for complete submersion in liquid. The cooling fan is not waterproof and must be removed prior to driving in wet conditions.
