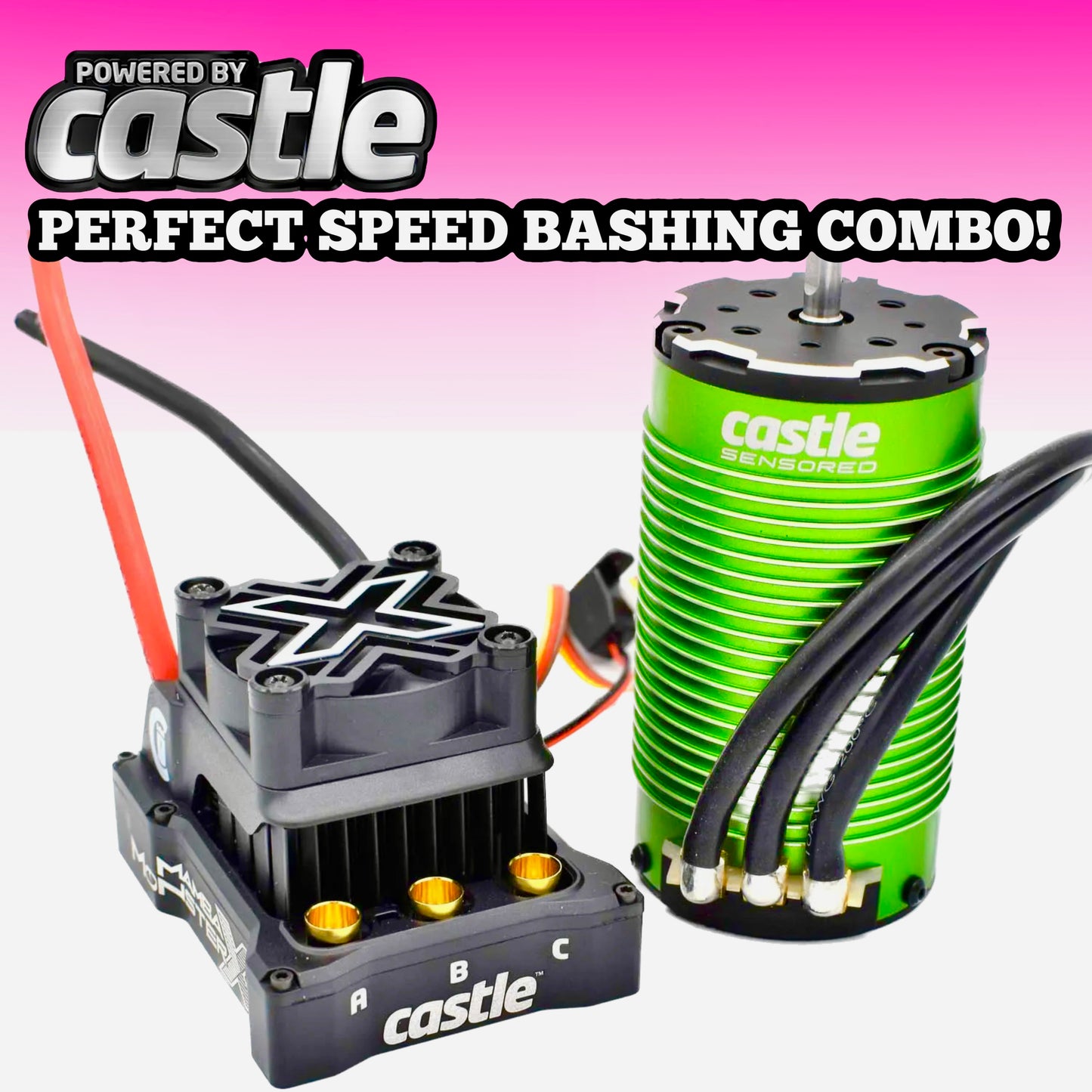

Castle Creations Mamba Monster X 8S ESC & 1717 1650KV Motor Combo + GIFT!

Castle Creations Mamba Monster X 8S ESC & 1717 1650KV Motor Combo + GIFT!

$389.95 USD
$389.95 USD
Sale Sold out
Shipping calculated at checkout.

The MAMBA MONSTER X 8S, 33.6V ESC W/1717-1650KV SENSORED COMBO is a perfect upgrade for 1/8 vehicles and lighter 1/6 vehicles weighing up to 20 lbs. and running up to 8S LiPo.

RACER TESTED - BASHER APPROVED

Drive fearlessly and punch that throttle! The MAMBA MONSTER X 8S utilizes Castle’s breakthrough technology CRYO-DRIVE™.  By reducing the rate at which the ESC heats up and removing heat more efficiently, your setup will be able to handle higher gear ratios, in heavier vehicles, with longer runs.  These software advancements work in parallel with a unique open housing design to allow increased directional airflow to cool critical components. With the integration of a 40mm cooling fan and a forged elliptical fin heatsink, the design maximizes airflow throughout the system, taking thermal performance to a whole new level.

High-performance demands high quality and this ESC was designed with durability in mind. Constructed around a robust aluminum casing, the epoxy potting guarantees protection around the circuitry and ensures all-weather use. Mamba Monster X 8S is a workhorse, it will dominate in the harshest of environments.

You can easily optimize the ESC for any driving condition, from rugged terrain to smooth pavement to the perils of rock and gravel. Create, save and download setup profiles through the Castle Link Programming Suite on your Windows™ PC, or wirelessly with the convenience of the new B-Link™ Bluetooth™ Adapter and Castle Link app for Android or iOS.

Additional tuning flexibility awaits you with on-the-fly adjustments from your transmitter via the Auxiliary wire. Simply connect the white signal wire to an open radio channel, and enable the feature in Castle Link by selecting what Auxiliary function you would like to use. Access programming parameters such as Torque Control, Max Brake or Rock Race Mode. Optimize your vehicle for any racing or bashing application you can imagine!

When paired with the newly released Castle 1717-1650KV, users with heavy, high speed rigs will experience controllable low-end ranges without sacrificing power, punch or speed.  SmartSense™ mode uses the motor’s sensors to start the motor to provide smooth starts, excellent torque, and low-speed drivability. Once the motor is spinning, it seamlessly transitions to Castle’s ultra-efficient sensorless mode. You’ll put more power to the ground, where it should be, instead of wasting it through raw heat and RPMs.

Whether you are burning out, dropping the hammer, trigger happy, powering out, on-the rocks, off-the-rocks, wheeling or mud bogging - MAMBA MONSTER X 8S is ready to test the limits of your R/C car or truck.

FEATURES:



  • Input Voltage Range 2S-8S LiPo
  • Sensorless, Sensored and SmartSense™ Running Modes
  • Powerful Integrated 8A Peak Adjustable BEC (5.25V-8.0V)
  • CRYO-DRIVE™ Technology minimizes the amount of time the ESC’s electrical components spend generating heat, resulting in improved thermal performance during partial throttle operation where the majority of driving occurs
  • ESC is housed in a rugged CNC aluminum case and potted in waterproof epoxy to  protect the electronics and promote efficient heat transfer
  • Premium forged heatsink with elliptical fins for superior air flow and increased heat dissipation
  • Oversized factory equipped thermally controlled 40MM cooling fan
  • Compatible with S.BUS2 Telemetry Link and Futaba T4PX and T7PX transmitters
  • Waterproof design for all weather conditions
  • Data logging capability to capture and record performance data from your vehicle
  • Auxiliary wire functionality for "on-the-fly" adjustments using your transmitter
  • Audible alerts for easy diagnosis of common issues such as motor-over-temperature and low-voltage cutoff
  • Convenient transmitter programming for six common adjustable settings including cutoff voltage and drag brake
  • Easily tune and update ESC with USB and Bluetooth™ programming options
  • Castle Link USB programming kit (coupon included with purchase)
  • Optional smartphone-based programming with the B-LINK™ Bluetooth Adapter (sold separately) and Castle Link app available on Google Play or Apple App Store
  • Proudly designed and manufactured in Olathe, KS USA and backed by Castle Creations' 1-year warranty

MOTOR FEATURES:





  • 4-POLE 12-SLOT sensored design that boasts exceptional efficiency and produces less heat
  • Proprietary stator winding produces low internal resistance for a cooler running motor
  • Oversized NMB bearings and vibration dampening system ensure the longest possible bearing life
  • High-strength, high-temperature grade neodymium sintered magnets combined with high-strength Kevlar wrap ensures the integrity of the rotor is not compromised during harsh running conditions and high RPMs



MAMBA MONSTER X 8S, 33.6V ESC W/1717-1650KV SENSORED COMES WITH:

  • Mamba Monster X 8S ESC
  • 4-POLE Sensored 1717-1650KV Motor
  • Castle Sensor Harness Adapter
  • 200mm Sensor Wire
  • Mamba Decals
  • Coupon for free Castle Link USB
  • ESC Quick Start Guide
  • Motor Quick Start Guide



Technical Specs
Controller:
Input Voltage Range: MIN: 2S LiPo , MAX: 8S LiPo 33.6V
BEC Specifications: Adjustable: 5.5V, 6.0V, 7.5V. or 8.0V (8A Peak), default 5.5V
Operating Environment: Waterproof* design allows for use in nearly any environment.
Brake: Proportional
Reversible: Yes, but may be disabled for racing.
On/Off Switch: Yes, waterproof
Cooling Fan: Yes, factory equipped (40MM), fully removable** (see Product Use Statements below)
Size: L x W x H 69.5mm x 54.1mm x 47mm
Weight (with no battery connector): 5.75 oz. (163 grams)
Connectors: 6.5mm female bullets for motor connection.
Items Needed for Operation: A high current connector designed for high-powered electric systems, rated for 120+ amps, such as Castle CC Bullet 6.5mm, CC Bullet 8.0mm, or 6.5mm Polarized Castle Connectors, soldered to the battery leads.
Product Use Statements:
  1. Recommended battery capacity for 1:6th scale vehicles is 5000mah. We recommend using 50C continuous discharge or higher LiPo batteries.
  2. Surge ratings should never be used to determine a pack’s suitability for a brushless application.
  3. We recommend a high current connector designed for high-powered electric systems, rated for 120+ amps, such as Castle CC Bullet 6.5mm, CC Bullet 8.0mm, or 6.5mm Polarized Castle Connectors.
  4. Applying voltages higher than 33.6V will cause irreparable damage to ESC; DO NOT RUN HV CELLS (above 4.2v/cell) WHEN RUNNING AT MAX CELL COUNT (8s). This will exceed the 33.6v rating and will damage the ESC and not be covered by the warranty.
  5. Although Mamba Monster X 8S is waterproof, it is not intended for operation while completely submerged in liquid. Always rinse the ESC with clean water after exposure to corrosives or dirt.
  6. The cooling fan must be removed prior to driving in wet conditions. It is not waterproof.
Application Guidelines: Mamba Monster X 8S and 1717-1650Kv motor is intended for use in 1:6th scale vehicles weighing up to 20 lbs. and running up to 8S LiPo. A great upgrade for heavier 1:8th vehicles and lighter 1:6th vehicles.
Programmability:
 Fully programmable Castle feature set using Castle Link USB adapter (coupon for free Link included) and freely downloadable Castle Link Windows™ software, or the Castle Link iOS® or Android® app with B-LINK™ Bluetooth™ Adapter (sold separately).
Telemetry Link Capable:
 Yes, with Castle Creations Telemetry Link for S.BUS2 and Futaba T4PX and T7PX transmitters.


Motor Specs
Input Voltage Range: 3S-8S LiPo
Kv: 1650
Max. RPM: 56,000
Size: Length: 3.35" (85.1mm)
Diameter: 1.87" (47.6mm)
Weight (w/wires): 597.6g (21.08oz); 548g without wires
Shaft Diameter: 5mm
Mounting Hole Specifications: M3 and M4@25.4mm (1.0") Diameter
Cooling Fan: Optional, 011-0162-00
Connectors: 6.5mm male connectors
Application Guidelines:
 Ideal for vehicles up to 20lbs running 6s – 8s LiPo.  Examples include Losi LST2-E; Arrma™: Limitless™, Typhon™ 6s, Infraction™, Talion™ 6s; Traxxas: E-Maxx™, E-Revo™, UDR™, Summit™; Redcat Shredder™ Note: "Recommendations based on vehicle weight and motor capabilities. Verify motor fitment, may require optional motor mount."
Tech Notes:
  1. Running modes: SMARTSENSE™, Sensored, Sensorless with Castle sensored capable ESCs. It is strongly recommended to not use the “Sensored Only” motor type option. The default “Smart Sense™” modes uses the sensors (if applicable motor is used) to start the motor smoothly. Once the motor is running the ESC stops using the sensors and reverts to sensorless operation. Sensorless mode is more efficient resulting in cooler temperatures and potentially higher motor performance.
  2. Do not use mounting screws that extend more than 5mm into the front of the motor. Using too long of a screw can result in damage to the motor's windings and will not be covered by the warranty.
  3. Water Resistant Design: The sensor board is coated with silicone conformal coating to protect the sensors from moisture. The sensor connections are not water resistant; water can cause signal loss which could result in loss of sensored capabilities. Castle recommended applying dielectric grease to the outside of the sensor wire connections after installation of the wire. Routine maintenance is recommended after running in wet conditions. Please refer to this document for running and maintaining motors in wet environments.
