Castle Creations & Ghost RC Cobra 8 ACE ESC - Drag & High-Speed

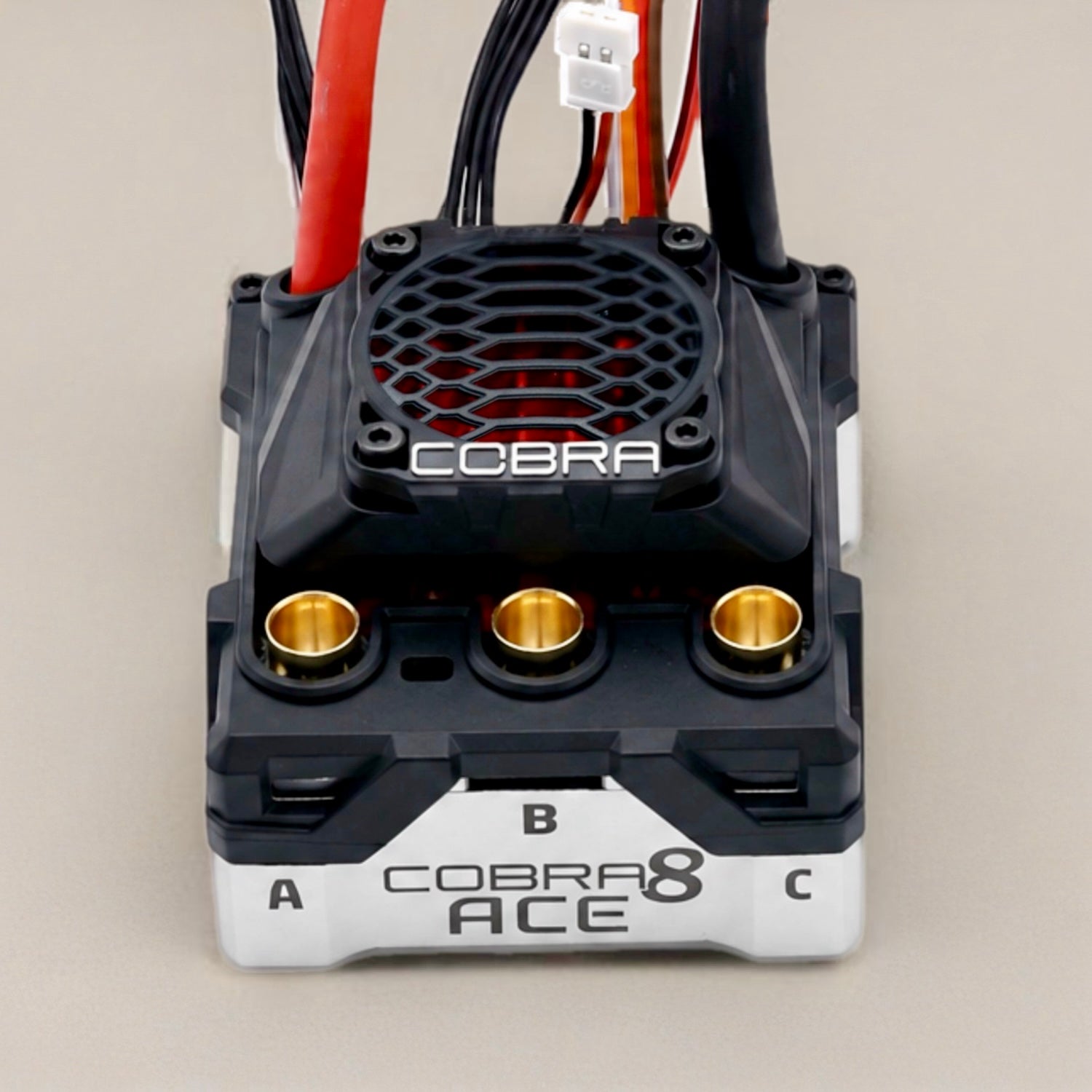

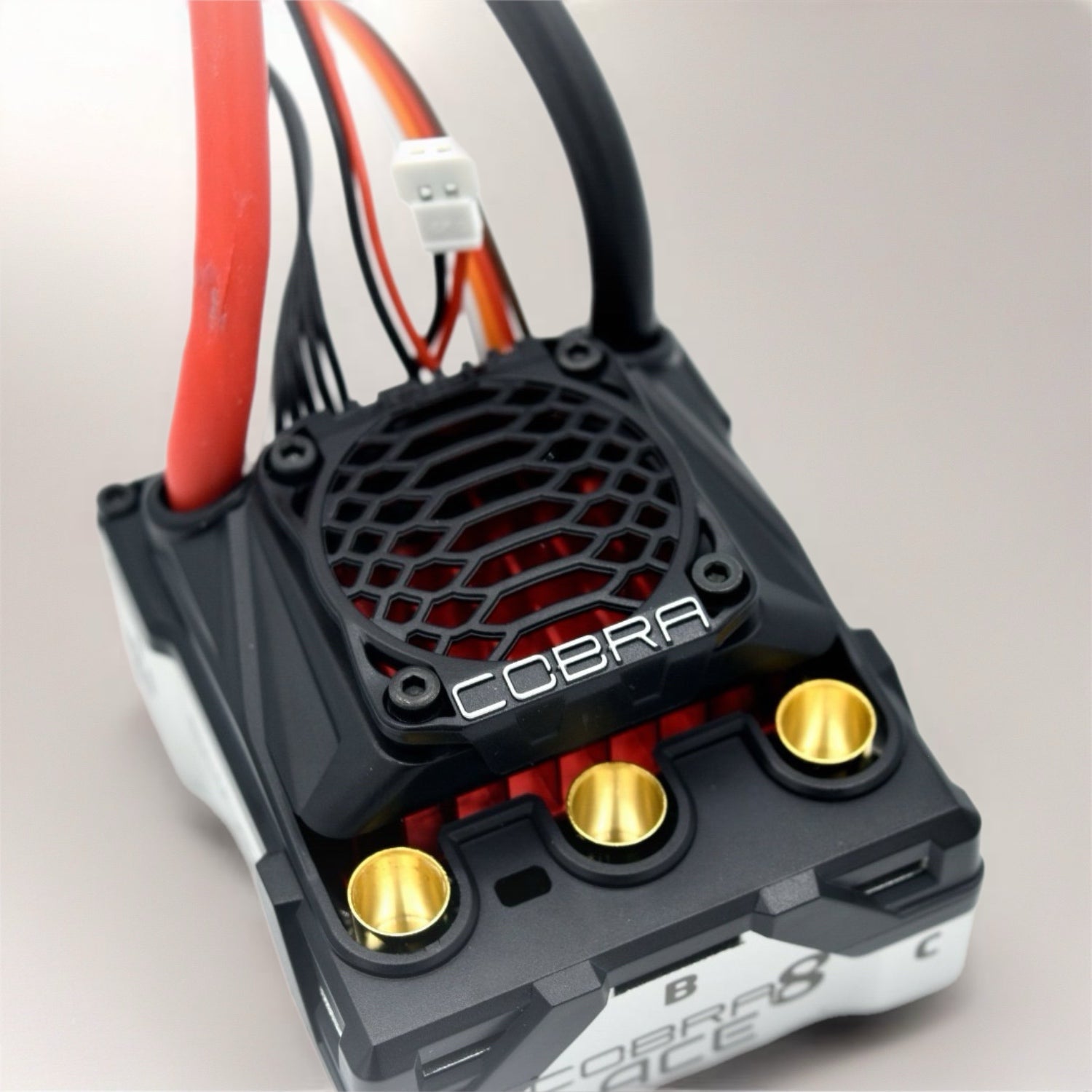

The Ghost RC Cobra 8 ACE is a high-performance electronic speed controller designed specifically for 1/10 No Prep Drag Racing. Built on Castle's proven Cobra 8 platform and enhanced by Ghost RC, it offers advanced launch tuning, timing control, and data logging features for racers looking to fine-tune every aspect of their setup.

With a powerful adjustable BEC, waterproof construction, Castle Link programmability, and Ghost RC's exclusive drag racing firmware, the Cobra 8 ACE delivers the flexibility needed for today's competitive drag racing applications.

🔥KEY FEATURES

• 32-bit processor for smoother motor control and improved throttle response.
• Enhanced data logging with higher sampling frequency, longer recording time, electrical timing monitoring, onboard accelerometer data, looping logs, and downloadable sessions.
• Adjustable internal BEC from 5.0V to 8.0V in 0.1V increments.
• Castle Link V4 USB programmer included for free firmware updates and programming.
• Optional Bluetooth programming with the Castle B-Link 2 interface (sold separately).
• CRYO-DRIVE technology helps improve thermal performance during partial throttle operation.
• Premium CNC aluminum case with waterproof epoxy potting.
• Premium forged heatsink for improved airflow and heat dissipation.
• Auxiliary wire functionality for transmitter-controlled adjustments.
• Audible diagnostic alerts for common ESC conditions.
• Designed and manufactured in Olathe, Kansas, USA.

DRAG RACING FEATURES

• Enhanced Start Power provides increased control over launch performance.
• Start Power Ramp Time adjusts how quickly launch power is applied.
• Start Power Hold Time controls how long Start Power is maintained before transitioning into Boost Timing or Programmed Throttle.
• RPM Limiter allows a maximum motor RPM to be set, helping reduce rotor failures if driveline components fail.
• Boost Timing adds up to 120° total motor timing using RPM-based or throttle percentage activation (sensored operation required).
• Turbo Timing provides additional timing after Boost Timing with adjustable activation point and programmable degrees-per-second ramp rate.
• Programmed Throttle Curve automatically engages a user-defined throttle curve after launch.
• Upgraded 8 AWG Battery Wires are designed for high-current drag racing applications.

📦WHAT'S INCLUDED

• Ghost RC Cobra 8 ACE ESC
• Castle Link V4 USB Adapter
• 300mm Direct Connect Sensor Wire

⚙️TECHNICAL SPECIFICATIONS

DOWNLOADS

• User Guide
• Quick Start Guide
• Motor Quick Start Guide
• Audible Alert Reference Chart
• ESC Mounting Template

IMPORTANT NOTES

• An external capacitor pack must be used with the Ghost RC Cobra 8 ACE. Failure to use an external capacitor pack can affect ESC performance and lead to damage.
• A high-current battery connector rated for 120A or greater is recommended.
• This ESC is intended for advanced 1/10 No Prep Drag Racing applications.

SUPPORT & WARRANTY

Perfect Pass RC does not provide technical support or service for Ghost RC products. For technical support or warranty inquiries, please contact Ghost RC directly.

Due to the aggressive nature of drag racing, this product is sold without warranty.

WARNING

This product is intended for advanced drag racing applications. Drag racing and speed run setups place extreme demands on electronic components and require careful setup, tuning, and a thorough understanding of high-performance RC systems.

Improper setup, installation, application, alteration, or ESC tuning can result in catastrophic failure of the ESC, motor, batteries, drivetrain, or other components. Every part of the power system is subjected to significant stress during drag racing and speed run operation.

Due to the aggressive and abusive nature of these applications, Perfect Pass RC is not liable for incidental or consequential damage to other equipment resulting from the use of this product, including damage to ESCs, motors, batteries, or other vehicle components.

This product is sold without warranty.
