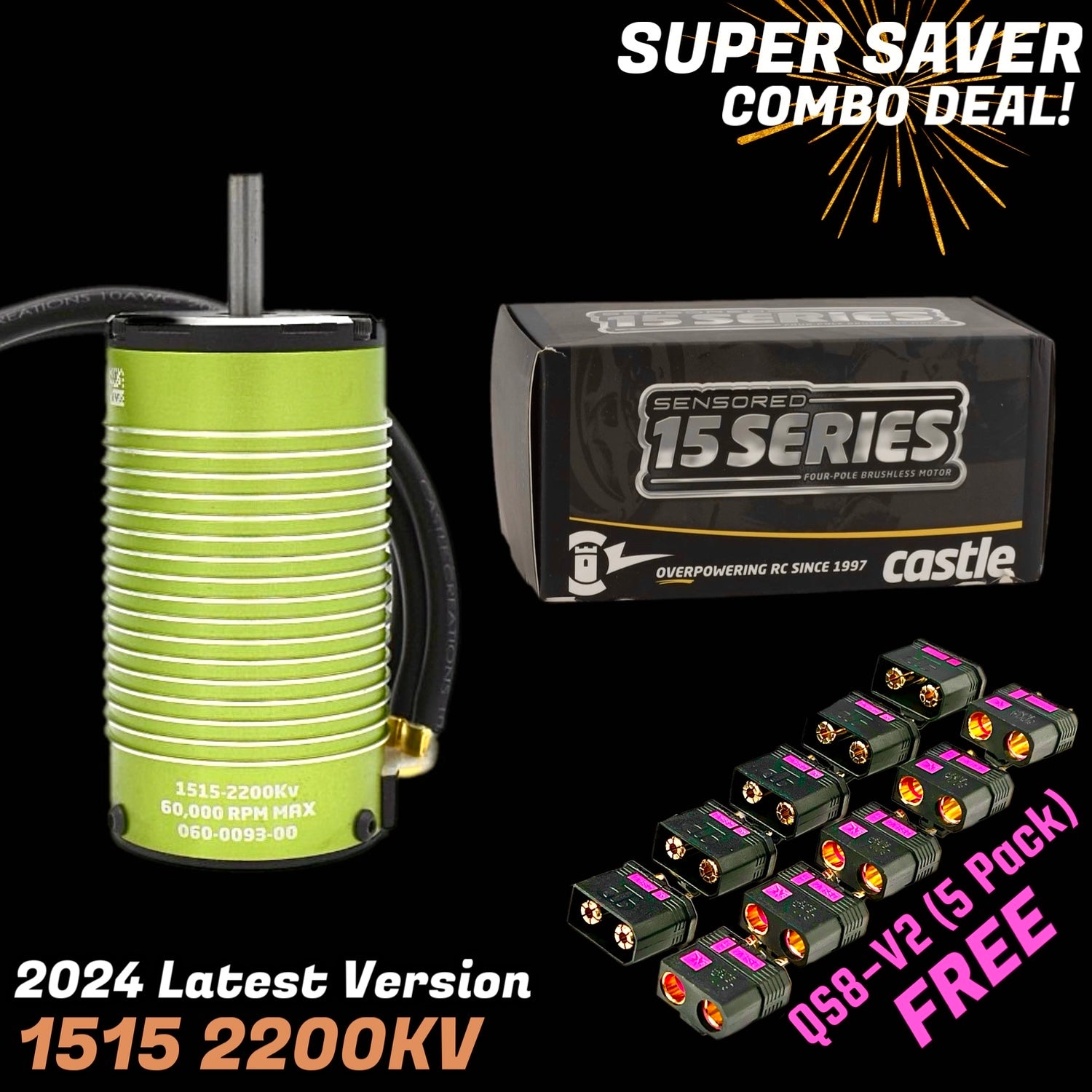

Castle Creations 1515 2200KV V2 Motor + GIFT!

Castle Creations 1515 2200KV V2 Motor + GIFT!

$174.95 USD
$174.95 USD
Sale Sold out
Shipping calculated at checkout.
The newly redesigned 1515-2200Kv V2, a new spin on one of the most popular motors we have ever produced! The rotor and stator have been completely redesigned to improve magnetic flux. This results in higher efficiency, smoother start-up, reduced temperatures, and longer run times!

Note: 011-0130-00 Rotor Replacement is NOT compatible with the V2 motor. A new rotor replacement will be available in the future. Check back here for updates.

1515-2200Kv V2 FEATURES:




  • Input Voltage range: 2s-6s LiPo
  • Redesigned rotor and stator assemblies.
  • Reduced magnetic cogging, producing less residual drag brake.
  • Increased efficiency, resulting in lower temperatures and longer run times.
  • Smoother start-up, reducing cogging or stuttering when starting from a stop.
  • Rebuildable design allows replacement of front end bell/bearing assembly or rotor/shaft assembly.
  • High-Strength Kevlar Wrap and 180C Grade Neodymium Sintered Magnets







  • Oversized NMB Bearings and High-Temperature, High-Purity Copper Windings
  • Castle 10 AWG, High-Strand-Count Silicone-Insulated Wire with 6.5mm Bullet Connectors
  • High-Performance 0.2mm Steel Lamination Stacked Stator
  • Oversized, low-resistance, gold-plated solder tabs
  • Sensor board with High Quality Temperature-Stabilized Sensors
  • T6 Aluminum CNC Machines Front/Rear End bell
  • Proudly Designed and Supported in Kansas, USA.
  • Backed by Castle Creations' 1-YEAR WARRANTY




Technical Specs
Input Voltage Range: 2S-6S LiPo
Kv: 2200
Max. RPM: 60,000
Size: Length: 75.4mm
Diameter: 40mm (41.4mm with fins)
Weight (w/wires): 426g (15.1oz) ; 380g without wires
Shaft Size: Length: 20mm
Diameter: 5mm
Mounting Hole Specifications: M3 and M4 @ 25mm
Cooling Fan:
Connectors: 6.5mm male Castle Bullet Connectors, includes 210mm length sensor wire.
Items Needed for Operation: Compatible Electronic Speed Control (ESC)
Application Guidelines: Ideal for 1:8 scale buggies, truggies, on-road vehicles and 1:10 scale monster trucks up to 15lbs. Not recommended for use in high speed 1/8th and larger applications (IE Arrma Infraction and Limitless, Traxxas XO-1)
Recommended ESC(s): Monster X ESC, Mamba X ESC, Sidewinder 8
Max. Recommended Vehicle Weight: See application guidelines
Tech Notes:

Running modes: SMARTSENSE™, Sensored (with Sensored capable ESC), Sensorless

Water Resistant Design: The sensor board is coated with silicone conformal coating to protect the sensors from moisture. The sensor connections are not water resistant; water can cause signal loss which could result in loss of sensored capabilities. Castle recommended applying dielectric grease to the outside of the sensor wire connections after installation of the wire. Routine maintenance is recommended after running in wet conditions. Please refer to this document for running and maintaining motors in wet environments.
