TP Power 4090 Motor
TP Power 4090 Motor
Couldn't load pickup availability
This is a custom made motor recommended by our top drivers.
This motor reached 198MPH in a Perfect Pass RC 1/7 Car (single).

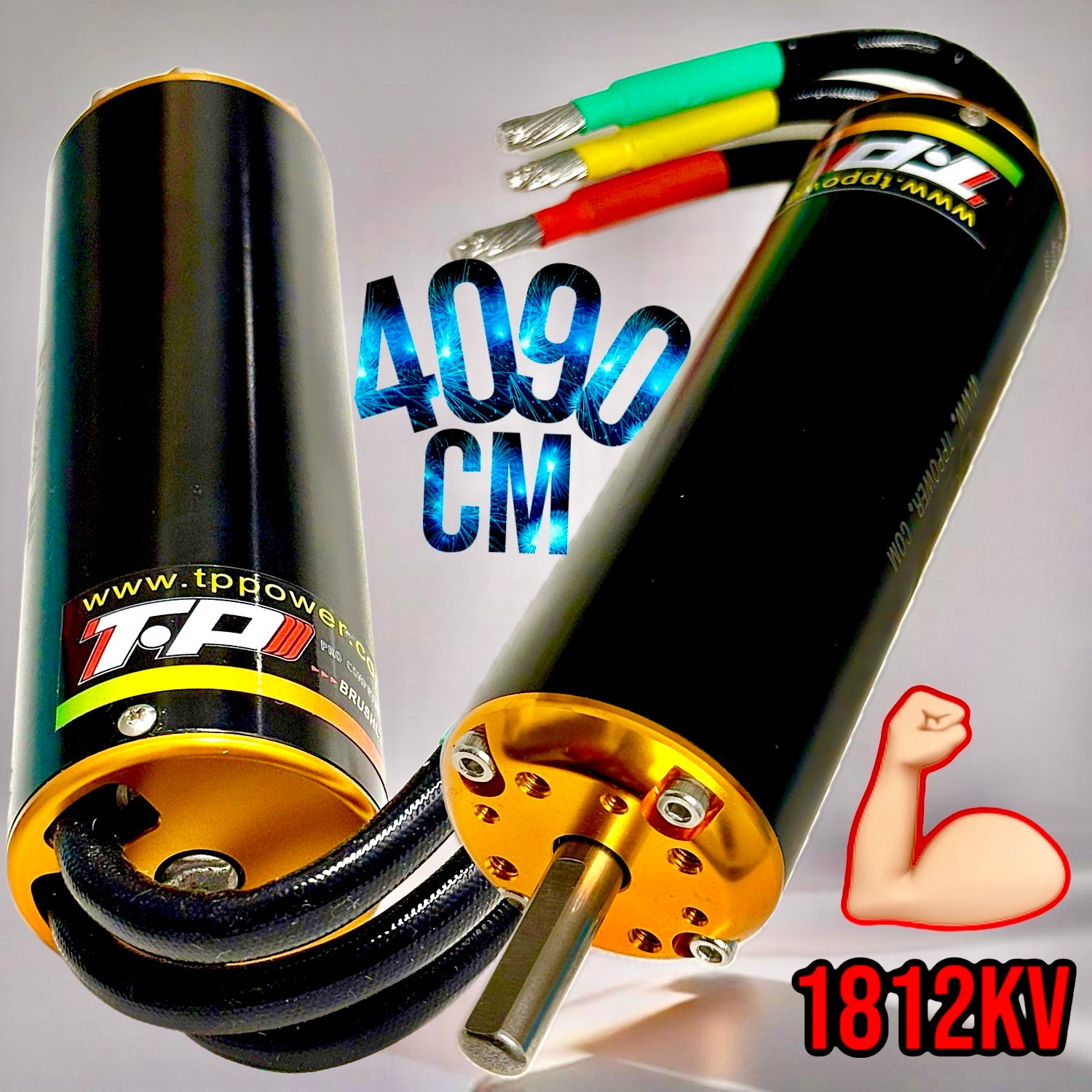

4090 1812KV CM (8S):
Can: Smooth
Wind: D
KV: 1812
Max Amps (A): 420
Max Volt (V): 8S
Continuous Power (W): 7000
Max Power (W): 13000
Max RPM: 55K
Internal Resistance (Ohm): 0.0028
No-load Current (A): 4.0

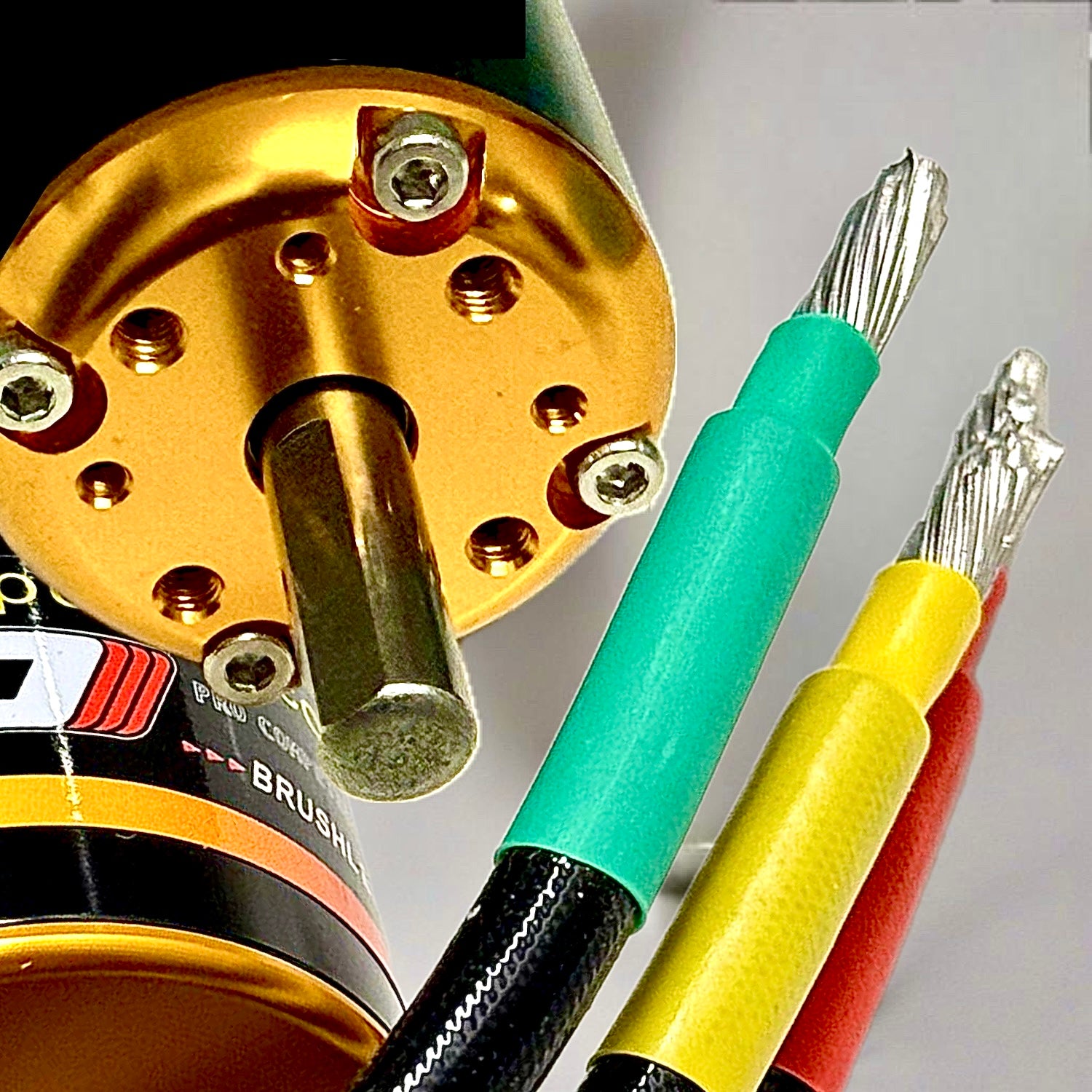

Shaft Diameter (mm): 8
Shaft Length (mm): 24
Diameter X Length (mm): 40X127
Mounting Pattern: 4 sets of M3 & M4 screw holes on the same front plate; with 25mm diagonal distance.
Weight: 820g
Pole: 4
4090 1620KV SVM (8S):
Can: Smooth
Wind: D
KV: 1620
Max Amps (A): 392
Max Volt (V): 8S
Continuous Power (W): 7200
Max Power (W): 13300
Max RPM: 55K
Internal Resistance (Ohm): 0.0028
No-load Current (A): 5.2
Shaft Diameter (mm): 8
Shaft Length (mm): 24
Diameter X Length (mm): 40X127
Mounting Pattern: 4 sets of M3 & M4 screw holes on the same front plate; with 25mm diagonal distance.
Weight: 850g
Pole: 4
