Tp Power 4080 Motor

TP Power motors are made of the best materials that are available, and have high efficiencies (>90%) required for the most demanding applications.

We carry only the latest newest versions!

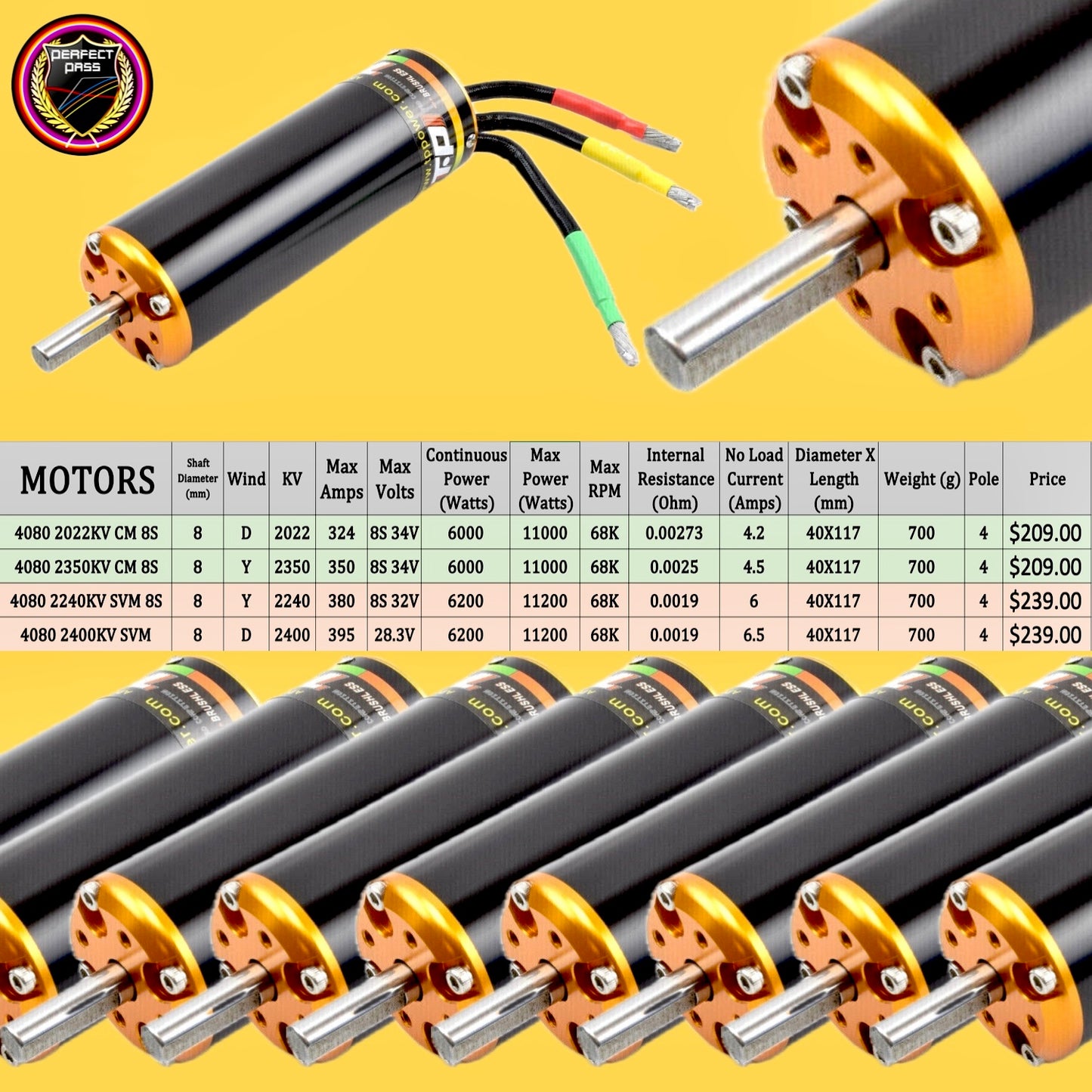

Please refer to the chart for detailed parameters.

This 8MM Shaft Tp Power 4080 Motor comes with the preferred sealed end cap!



4080 2022KV CM:

Wind: D

KV: 2022

Max Amps (A): 324

Max Volt (V): 8S 34V

Continuous Power (W): 6000

Max Power (W): 11000

Max RPM: 68k

Internal Resistance (Ohm): 0.00273

No-load Current (A): 4.2

Shaft Diameter (mm): 8

Diameter X Length (mm): 40X117

Weight: 700g

Pole: 4



4080 2350KV CM:

Wind: Y

KV: 2350

Max Amps (A): 350

Max Volt (V): 8S

Continuous Power (W): 6000

Max Power (W): 11000

Max RPM: 68k

Internal Resistance (Ohm): 0.00250

No-load Current (A): 4.5

Shaft Diameter (mm): 8

Diameter X Length (mm): 40X117

Weight: 700g

Pole: 4



4080 2240KV SVM:

KV: 2240

Winding: Y

Max Current (A): 380

Max Voltage (V): 32

Continuous Power (W): 6200

Max Power (W) - Less than 10 seconds for safety: 11200

Max RPM -  Less than 10 seconds for safety: 68K

No-load current (A): 6

Internal Resistance (Ohm): 0.0019

Weight (g): 700

Shaft diameter: 8mm

Output Shaft Length: 24mm

Diameter x length (mm): 40 x 117

Bolt pattern: 4-M4-25 and 4-M3-25 on the same plate to offer two choices

Poles: 4 pole



4080 2400KV SVM:

KV: 2400

Winding: D

Max Current (A): 395

Max Voltage (V): 28.3

Continuous Power (W): 6200

Max Power (W) - Less than 10 seconds for safety: 11200

Max RPM -  Less than 10 seconds for safety: 68K

No-load current (A): 6.5

Internal Resistance (Ohm): 0.001992

Weight (g): 700

Shaft diameter: 8mm

Output Shaft Length: 24mm

Diameter x length (mm): 40 x 117

Bolt pattern: 4-M4-25 and 4-M3-25 on the same plate to offer two choices

Poles: 4 pole
