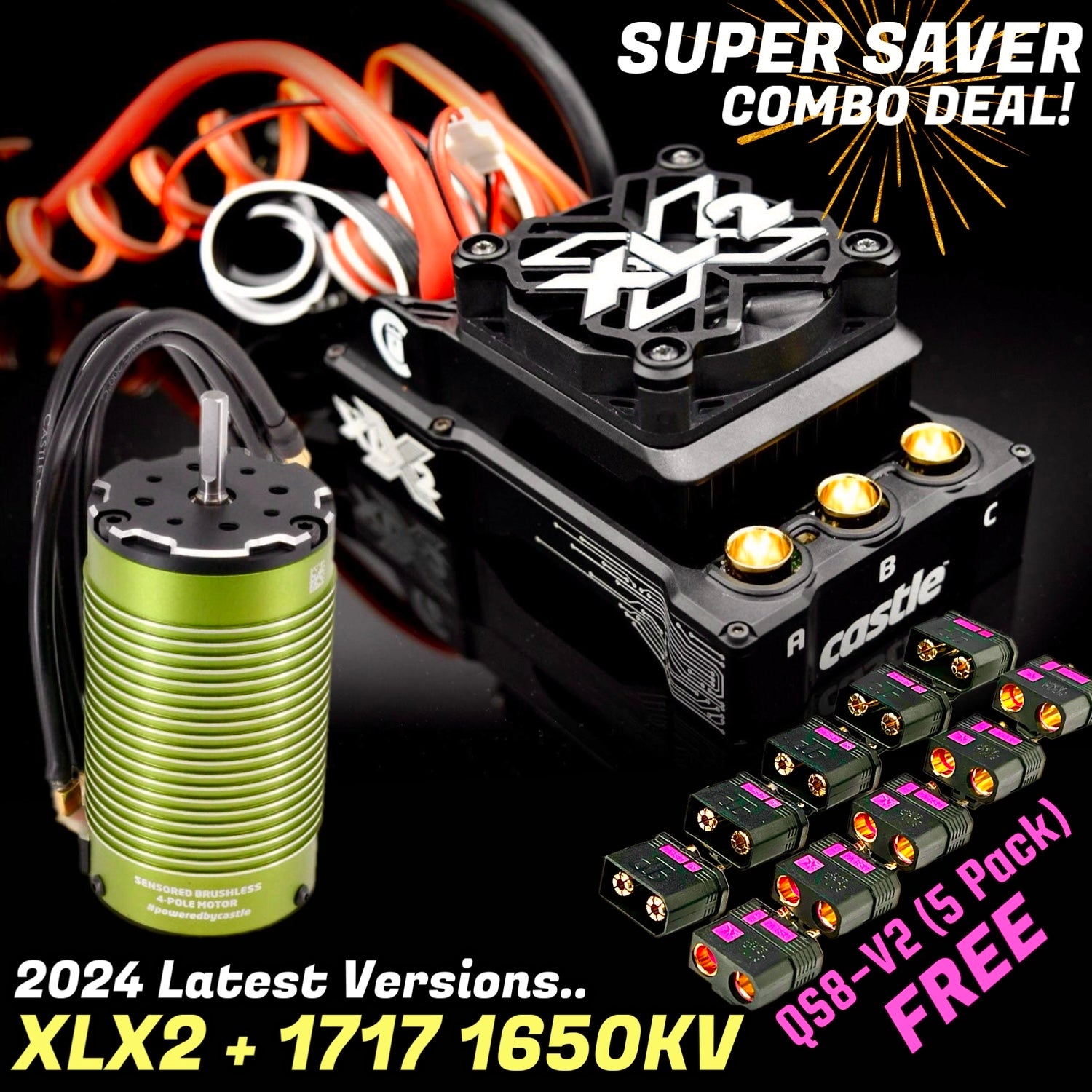

Castle Creations XLX2 ESC & 1717 1650KV Motor Combo + GIFT!

Castle Creations XLX2 ESC & 1717 1650KV Motor Combo + GIFT!

$459.95 USD
$459.95 USD
Sale Sold out
Shipping calculated at checkout.
Engineered from the ground up, the Mamba XLX2 is packed with a potent combination of hardware and software advancements, sensored performance, CRYO-DRIVE™ and waterproof design that will set a new standard for high performance power systems. The Mamba XL family is well known for its extreme performance capabilities. The XLX2 pays homage to the legacy of its predecessors and exceeds their performance on all levels.

CRYO-DRIVE™, Castle’s proprietary breakthrough technology integrates unique software and dedicated hardware to reduce heat and dramatically increase performance.  Thousands of times per second, the XLX2 software minimizes the amount of time the electrical components spend generating heat. These software advancements work in parallel with an open housing design which enables increased directional airflow to cool critical components. With the combination of a new 50mm fan and forged elliptical fin heatsink, the XLX2 maximizes airflow throughout the system, taking thermal performance to a whole new level. The results are more power handling, cooler ESC temperatures and longer runtimes and for ultra-high performance.

NOTE: Due to the high power nature of the XLX2, you must use appropriately sized batteries and connectors. We recommend a minimum 150 amp connector for the XLX2; examples include : Perfect Pass QS8-V2. DO NOT USE XT90, Traxxas, EC5/IC5 or any other connectors rated below 150 amps continuous.

You can easily optimize the ESC for any driving condition, from rugged terrain to smooth pavement to the perils of rock and gravel. Create, save and download setup profiles through the Castle Link Programming Suite on your Windows™ PC, or wirelessly with the convenience of the new B-Link™ Bluetooth™ Adapter and Castle Link app for Android or iOS.

Additional tuning flexibility awaits you with on-the-fly adjustments from your transmitter via the Auxiliary wire. Simply connect the white signal wire to an open radio channel, and enable the feature in Castle Link by selecting what Auxiliary function you would like to use. Access programming parameters such as Torque Control, Max Brake or Max Throttle.



MAMBA XLX 2 FEATURES:

  • Input Voltage Range 3S-8S LiPo (33.6v max)
  • Sensorless, SmartSense™  and Brushed Running Modes
  • Powerful Integrated 20A Peak Adjustable BEC (5.0V-8.5V)
  • CRYO-DRIVE™ Technology minimizes the amount of time the ESC’s electrical components spend generating heat, resulting in improved thermal performance during partial throttle operation where the majority of driving occurs
  • ESC is housed in a rugged CNC aluminum case and potted in waterproof epoxy to  protect the electronics and promote efficient heat transfer
  • Premium forged heatsink with elliptical fins for superior air flow and increased heat dissipation
  • Oversized factory equipped thermally controlled 50MM cooling fan
  • Compatible with S.BUS2 Telemetry Link and Futaba T4PX, T7PX and T7PXR transmitters
  • Mounting holes located in bottom of aluminum case for affixing to your vehicle
  • Waterproof design for all weather conditions
  • Data logging capability to capture and record performance data from your vehicle
  • Auxiliary wire functionality for "on-the-fly" adjustments using your transmitter
  • Audible alerts for easy diagnosis of common issues such as motor-over-temperature and low-voltage cutoff
  • Convenient transmitter programming for six common adjustable settings including cutoff voltage and drag brake
  • Easily tune and update ESC with USB and Bluetooth™ programming options
  • Castle Link USB programming kit (coupon included with purchase)
  • Optional smartphone-based programming with the B-LINK™ Bluetooth Adapter (sold separately and Castle Link all available on Google Play or Apple App Store)
  • Proudly designed and manufactured in Olathe, KS USA and backed by Castle Creations' 1-year warranty



5MM SHAFT Castle 1717 1650KV motor / 4-POLE 12-SLOT design.

Exceptional EFFICIENCY, produces LESS HEAT.

This motor is a blast from the past with the added benefit of sensored capabilities! It is the perfect upgrade for any 1/8 - 1/7 scale vehicles weighing up to 20 lbs and running up to 8s LiPo; it is also a great upgrade for drivers looking for a reliable, high torque 8s motor for their 1/8 scale vehicles.Running modes include Sensored and an ULTRA-EFFICIENT sensorless mode.

The 1717-1650Kv is ideal for vehicles up to 20lbs running 6s – 8s LiPo. Examples include Losi LST2-E; Arrma™: Limitless™, Typhon™ 6s, Infraction™, Talion™ 6s; Traxxas: E-Maxx™, E-Revo™, UDR™, Summit™; Redcat Shredder™
Note: Recommendations based on vehicle weight and motor capabilities. Verify motor fitment, may require optional motor mount.

  • High-strength, high-temperature grade neodymium sintered magnets combined with High-strength Kevlar wrap ensures the integrity of the rotor is not compromised during harsh running conditions.
  • Oversized NMB bearings and vibration dampening system ensure the longest bearing life possible.
  • Our proprietary winding techniques allow us to produce a stator assembly that is the lowest possible resistance, resulting in a cooler running motor.
  • Updated modern and sleek design; looks as cool as it performs.

Without a robust and reliable design, efficiency will only go so far. RC enthusiasts love pushing their equipment to the edge. The Castle engineers know this and spared no expense when developing a design that could hold up to the harsh conditions that the RC community will throw at it, resulting in a cooler running motor. A cooler motor has a longer lifetime. Construction of our motor required careful component selection; each verified through internal testing to ensure the HIGHEST EFFICIENCY possible. In the end, the result is a motor with unmatched quality, performance, and reliability. We wouldn’t put our name on anything less.

Technical Specs
Input Voltage Range: 3s-8s LiPo Max
Kv: 1650
Max. RPM: 56,000
Size: Diameter: 1.87” (47.6mm) at fins, 46mm at can.
Length: 3.35” (85.1mm)
Weight (w/wires): 597.6g (21.08 oz); 548g without wires
Shaft Size: Length: 20mm
Diameter: 5mm
Mounting Hole Specifications: M3 and M4 @ 25.4mm (1")
Cooling Fan: Optional
Connectors: 6.5mm male bullets
Items Needed for Operation: Compatible Electronic Speed Control (ESC) (see Recommended ESC(s) below)
Product Use Statements:
  • Monitor motor temperatures closely; overheating a motor will cause permanent damage to the magnets. Never exceed 180° F on the the motor or ESC.
  • Do not use mounting screws that extend more than 5mm into the front of the motor. Using too long of a screw can result in damage to the motor's windings and will not be covered by the warranty.
Application Guidelines:
  • Ideal for vehicles up to 20lbs running 6s – 8s LiPo.  Examples include Losi LST2-E; Arrma™: Limitless™, Typhon™ 6s, Infraction™, Talion™ 6s; Traxxas: E-Maxx™, E-Revo™, UDR™, Summit™; Redcat Shredder™ Note: "Recommendations based on vehicle weight and motor capabilities. Verify motor fitment, may require optional motor mount."
  • The 1717-1650Kv is a water resistant design. The sensor board is coated with silicone conformal coating to protect the sensors from moisture. The sensor connections are not water resistant; water can cause signal loss which could result in loss of sensored capabilities. We recommend applying dielectric grease to the outside of the sensor wire connections after installation of the wire. Routine maintenance is recommended after running in wet conditions. Please refer to this document for running and maintaining motors in wet environments.
Recommended ESC(s): Mamba Monster X 8S
Max. Recommended Vehicle Weight: Vehicles weighing less than 20lbs.
Tech Notes:

Running modes: Sensorless and Sensored



  • Our IMPROVED 4-POLE 12-SLOT design boasts exceptional EFFICIENCY and produces LESS HEAT.
  • QUIETSENSE™ technology shields the sensors from magnetic field noise generated from the motor coils and keeps your motor and ESC in sync at all times. Use of a Flux Shield™ in conjunction with secondary Sense Magnets delivers even HIGHER PRECISION and MORE EFFICIENT startups.
  • Our OPTIMIZED design eliminates the need for mechanical timing adjustments. Our sensor alignment method delivers uniform timing and torque in both directions, automatically.
  • Updated modern and sleek design; looks as cool as it performs.

You will reap the benefits of longer run times on one battery and a cooler running motor that can be pushed harder.

We take OVERPOWERING seriously.

Castle engineers always add a little something extra in their designs that takes your performance to the next level. We have not skimped here. Many customers have utilized our industry leading software functionality that Castle Link* offers. When paired with a Castle Creations sensor supported ESC, you can unlock advanced tuning capabilities that Castle Link provides specifically for sensored motors.

SMARTSENSE™ uses the motors sensors to start the motor to provide smooth starts, excellent torque, and low-speed drivability. Once the motor is turning, it seamlessly transitions to Castle’s ULTRA- EFFICIENT sensorless mode. When running, a motor must transition between different load points and a different timing advance is required for optimal efficiency at all load points. Using mechanical timing adjustments alone, you can only target one driving condition, such as higher start power or higher top end speed. This sacrifices performance and efficiency during the other driving phases. Electronic timing in SMARTSENSE™ will advance timing automatically for peak performance during all driving conditions. This allows users to combine the best of both worlds in an unrivaled HYBRID between smooth sensored startups and high-efficiency sensorless drive.

With a Castle sensored ESC and sensored motor you will have the ULTIMATE POWER PLANT for your vehicle. Users will experience PRECISE throttle control, BUTTERY SMOOTH starts, PEAK PERFORMANCE and EFFICIENCY throughout the full throttle range. You will feel the POWER and LONGER RUN TIMES that a WORLD-CLASS motor produces.

It’s not magic… it’s SMARTSENSE™.
